Build a footbridge
This is a 40-foot long footbridge over a wetland and brook. There are four “decks”; each deck section is 10’ long x 4’ wide. This foot bridge uses Sunwalk Perforated Decking to allow sunlight and rain through to allow vegetation to grow underneath.
Each 4’ x 10’ section is constructed with 2x6” pressure treated lumber and is mounted on 4x4” pressure treated posts. The sections are connected by two J-Brackets on each end. Each post is mounted using an aluminum Post Bracket. This allows for easy adjustment of the deck for leveling or future replacement of posts.
Foot bridge over a brook.
Post Bracket and Brace clamps
View of the Post Bracket and the two Brace Clamps (top and bottom) that hold the cross-braces.
The posts are sharpened (see video tip on sharpening posts quickly and easily), then driven into the ground with a Post Driving Cap. If a post cannot be driven into the ground, then a Post Foot can be used instead to stabilize the post in place.
Footbridge over the brook.

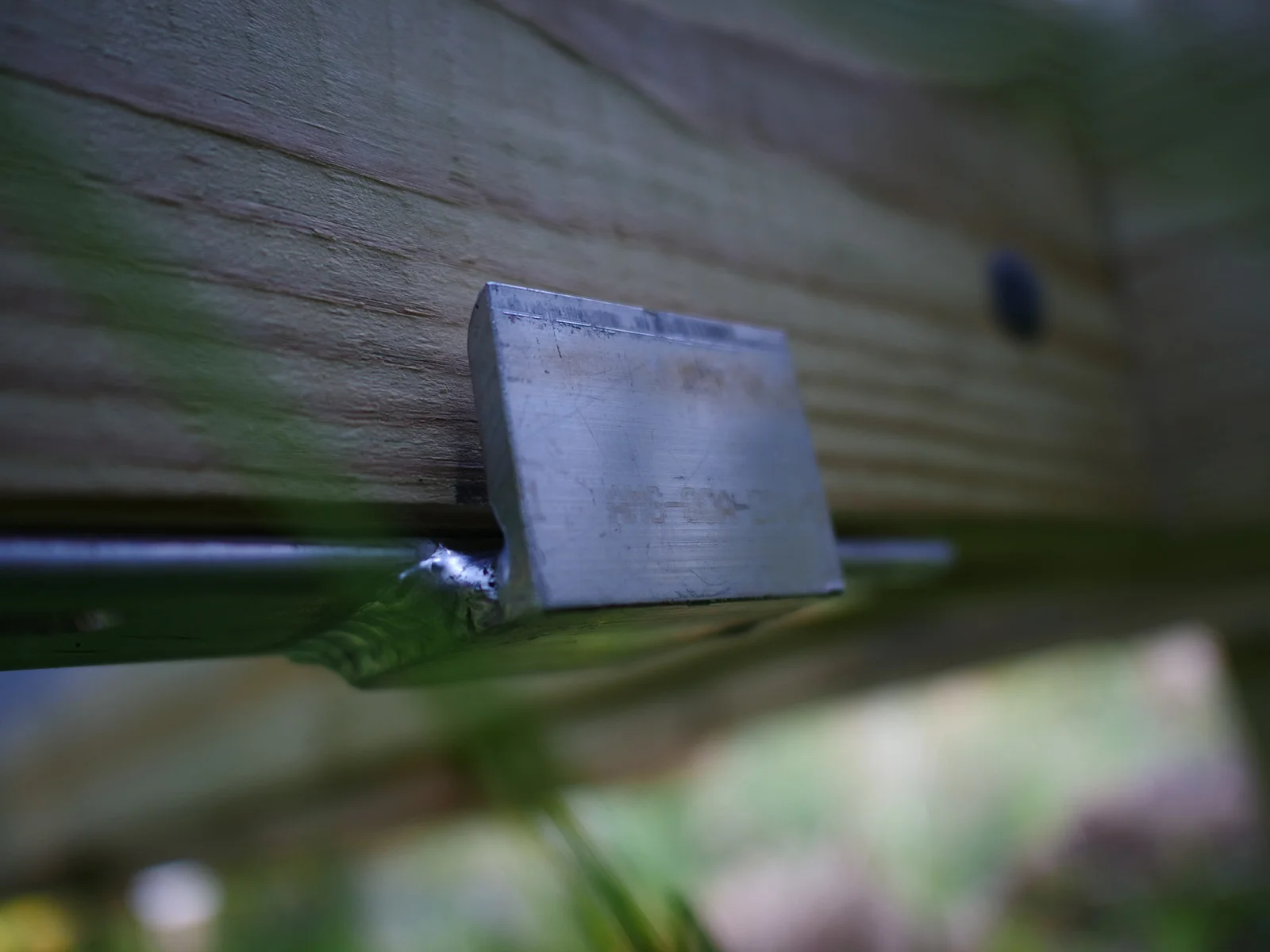

One of two J-Brackets receiving the next section.

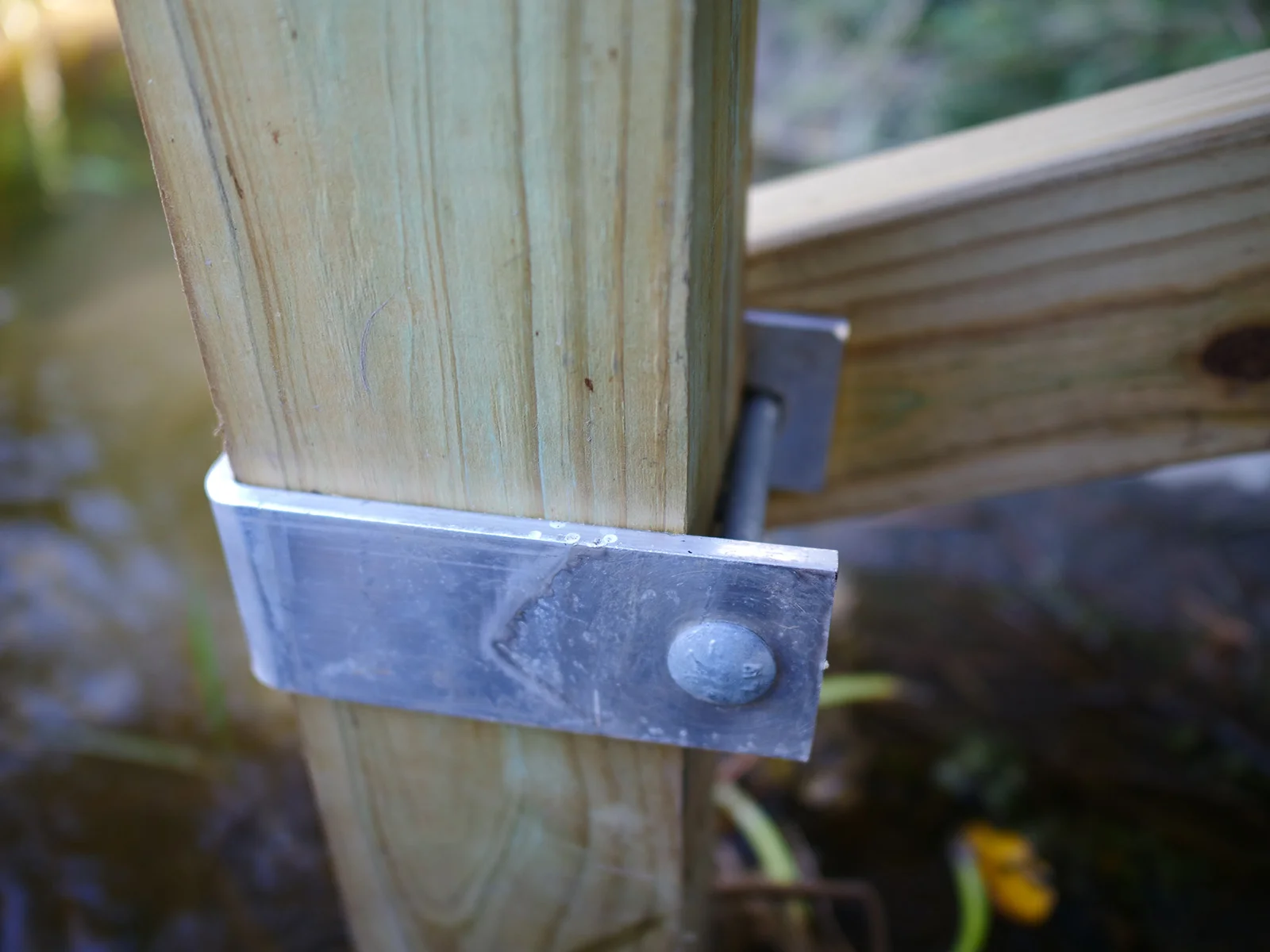

Brace Clamp holding the 2x4 PT cross brace end. Allows for future easy adjustment.
J-Bracket underneath connecting the sections. Upper right is a corner stiffener angle bracket for the corner of the 4 x 10 foot section.
